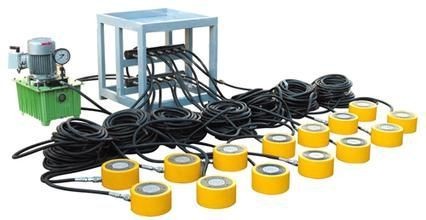

RCH大吨位同步千斤顶主要用于铁路桥梁整体顶升，大型机械设备的同步上升与下降等， 所顶重物体积较大，同步千斤顶克服了单个千斤顶起顶重物宜发生倾斜，导致起重物损坏并产生危险。使用时应使用多顶同步分流阀，并且每台顶所起重的负荷应均衡，保持起升及下降的速度同步。还应考虑地面因起重物重量不匀可能发生下陷，使起重物倾斜造成人为损坏。系列同步千斤顶安装有保压及溢流装置防止过载，并配有安全阀保护同步千斤顶达到安全操作及保护起重物的目的,保压装置更加适合于保压要求很高的桥梁施工中落梁。
|
型号 |
型号 |
吨位T |
拉力T |
本体 |
行程 |
伸展 |
油缸 |
活塞杆 |
油缸 |
重量 |
压力 |
|
PLUSFOS50/100 |
RCH50/100 |
50 |
20 |
225 |
100 |
325 |
140 |
70 |
100 |
25 |
63 |
|
PLUSFOS50/160 |
RCH50/160 |
285 |
160 |
445 |
29 |
||||||
|
PLUSFOS50/200 |
RCH50/200 |
325 |
200 |
525 |
33 |
||||||
|
PLUSFOS50/300 |
RCH50/300 |
425 |
300 |
725 |
38 |
||||||
|
PLUSFOS50/500 |
RCH50/500 |
625 |
500 |
1125 |
51 |
||||||
|
PLUSFOS100/100 |
RCH100/100 |
100 |
40 |
250 |
100 |
350 |
180 |
100 |
140 |
48 |
63 |
|
PLUSFOS100/160 |
RCH100/160 |
310 |
160 |
470 |
57 |
||||||
|
PLUSFOS100/200 |
RCH100/200 |
350 |
200 |
550 |
66 |
||||||
|
PLUSFOS100/300 |
RCH100/300 |
450 |
300 |
750 |
80 |
||||||
|
PLUSFOS100/500 |
RCH100/500 |
650 |
500 |
1150 |
110 |
||||||
|
PLUSFOS150/100 |
RCH150/100 |
150 |
60 |
285 |
100 |
385 |
230 |
125 |
180 |
47 |
63 |
|
PLUSFOS150/160 |
RCH150/160 |
345 |
160 |
495 |
59 |
||||||
|
PLUSFOS150/200 |
RCH150/200 |
385 |
200 |
585 |
71 |
||||||
|
PLUSFOS150/300 |
RCH150/300 |
485 |
300 |
785 |
95 |
||||||
|
PLUSFOS150/500 |
RCH150/500 |
685 |
500 |
1185 |
145 |
||||||
|
PLUSFOS200/100 |
RCH200/100 |
200 |
80 |
285 |
100 |
385 |
250 |
150 |
200 |
84 |
63 |
|
PLUSFOS200/160 |
RCH200/160 |
345 |
160 |
505 |
92 |
||||||
|
PLUSFOS200/200 |
RCH200/200 |
385 |
200 |
585 |
106 |
||||||
|
PLUSFOS200/300 |
RCH200/300 |
485 |
300 |
785 |
141 |
||||||
|
PLUSFOS200/500 |
RCH200/500 |
685 |
500 |
1185 |
203 |
||||||
|
PLUSFOS320/100 |
RCH320/100 |
320 |
120 |
310 |
100 |
410 |
320 |
180 |
250 |
182 |
63 |
|
PLUSFOS320/160 |
RCH320/160 |
370 |
160 |
530 |
210 |
||||||
|
PLUSFOS320/200 |
RCH320/200 |
410 |
200 |
610 |
237 |
||||||
|
PLUSFOS320/300 |
RCH320/300 |
510 |
300 |
810 |
291 |
||||||
|
PLUSFOS320/500 |
RCH320/500 |
710 |
500 |
1210 |
412 |
||||||
|
PLUSFOS400/100 |
RCH400/100 |
400 |
160 |
355 |
100 |
455 |
350 |
200 |
280 |
186 |
63 |
|
PLUSFOS400/160 |
RCH400/160 |
415 |
160 |
575 |
211 |
||||||
|
PLUSFOS400/200 |
RCH400/200 |
455 |
200 |
655 |
244 |
||||||
|
PLUSFOS400/300 |
RCH400/300 |
555 |
300 |
855 |
297 |
||||||
|
PLUSFOS400/500 |
RCH400/500 |
755 |
500 |
1255 |
414 |
||||||
|
PLUSFOS500/100 |
RCH500/100 |
500 |
200 |
360 |
100 |
460 |
410 |
250 |
320 |
310 |
63 |
|
PLUSFOS500/160 |
RCH500/160 |
420 |
160 |
580 |
350 |
||||||
|
PLUSFOS500/200 |
RCH500/200 |
460 |
200 |
660 |
390 |
||||||
|
PLUSFOS500/300 |
RCH500/300 |
560 |
300 |
860 |
471 |
||||||
|
PLUSFOS500/500 |
RCH500/500 |
760 |
500 |
1260 |
559 |
||||||
|
PLUSFOS630/100 |
RCH630/100 |
630 |
260 |
417 |
100 |
517 |
480 |
280 |
360 |
530 |
63 |
|
PLUSFOS630/160 |
RCH630/160 |
477 |
160 |
637 |
583 |
||||||
|
PLUSFOS630/200 |
RCH630/200 |
517 |
200 |
717 |
630 |
||||||
|
PLUSFOS630/300 |
RCH630/300 |
617 |
300 |
917 |
840 |
||||||
|
PLUSFOS630/500 |
RCH630/500 |
817 |
500 |
1317 |
1050 |
||||||
|
PLUSFOS800/100 |
RCH800/100 |
800 |
340 |
488 |
100 |
588 |
500 |
320 |
400 |
820 |
63 |
|
PLUSFOS800/200 |
RCH800/200 |
598 |
200 |
798 |
940 |
||||||
|
PLUSFOS800/300 |
RCH800/300 |
698 |
300 |
998 |
1080 |
||||||
|
PLUSFOS800/500 |
RCH800/500 |
898 |
500 |
1398 |
1320 |
||||||
|
PLUSFOS1000/100 |
RCH1000/100 |
1000 |
480 |
530 |
100 |
630 |
600 |
360 |
450 |
1086 |
63 |
|
PLUSFOS1000/200 |
RCH1000/200 |
630 |
200 |
830 |
1232 |
||||||
|
PLUSFOS1000/300 |
RCH1000/300 |
760 |
300 |
1060 |
1463 |
千斤顶使用说明书请参照电动液压千斤顶使用说明书
电动泵使用说明书请参照电动泵站使用说明书
RSM同步千斤顶（单动式）
|
型号 |
吨位T |
行程B-Amm |
液压缸有 |
液压油 |
本体高 |
伸展高 |
外径D mm |
重量Kg |
|
RSM-50 |
5 |
16 |
6.4 |
10 |
41 |
57 |
59 |
1 |
|
RSM-51 |
25 |
6.4 |
16 |
110 |
136 |
38 |
1 |
|
|
RSM-53 |
76 |
6.4 |
49 |
165 |
241 |
38 |
1.5 |
|
|
RSM-55 |
127 |
6.4 |
81 |
216 |
343 |
38 |
1.9 |
|
|
RSM-57 |
178 |
6.4 |
114 |
273 |
451 |
38 |
2.4 |
|
|
RSM-59 |
232 |
6.4 |
148 |
324 |
556 |
38 |
2.8 |
|
|
RSM-101 |
10 |
25 |
14.4 |
36 |
90 |
115 |
57 |
1.8 |
|
RSM-102 |
54 |
14.4 |
78 |
121 |
176 |
57 |
2.3 |
|
|
RSM-104 |
105 |
14.4 |
151 |
171 |
276 |
57 |
3.3 |
|
|
RSM-106 |
156 |
14.4 |
225 |
248 |
403 |
57 |
4.4 |
|
|
RSM-108 |
203 |
14.4 |
292 |
298 |
502 |
57 |
5.4 |
|
|
RSM-1010 |
257 |
14.4 |
370 |
349 |
607 |
57 |
6.4 |
|
|
RSM-1012 |
305 |
14.4 |
439 |
400 |
705 |
57 |
6.8 |
|
|
RSM-1014 |
356 |
14.4 |
513 |
451 |
806 |
57 |
8.2 |
|
|
RSM-151 |
15 |
25 |
20.3 |
51 |
124 |
149 |
70 |
3.3 |
|
RSM-152 |
51 |
20.3 |
104 |
149 |
200 |
70 |
4.1 |
|
|
RSM-154 |
102 |
20.3 |
207 |
200 |
302 |
70 |
5 |
|
|
RSM-156 |
152 |
20.3 |
309 |
272 |
424 |
70 |
6.8 |
|
|
RSM-158 |
203 |
20.3 |
412 |
322 |
526 |
70 |
8.2 |
|
|
RSM-1510 |
254 |
20.3 |
516 |
373 |
627 |
70 |
9.5 |
|
|
RSM-1512 |
305 |
20.3 |
619 |
424 |
729 |
70 |
10.9 |
|
|
RSM-1514 |
356 |
20.3 |
723 |
475 |
830 |
70 |
11.8 |
|
|
RSM-251 |
25 |
25 |
33.2 |
83 |
140 |
165 |
86 |
5.9 |
|
RSM-252 |
51 |
33.2 |
169 |
165 |
216 |
86 |
6.4 |
|
|
RSM-254 |
102 |
33.2 |
339 |
216 |
318 |
86 |
8.2 |
|
|
RSM-256 |
159 |
33.2 |
528 |
273 |
432 |
86 |
10 |
|
|
RSM-258 |
210 |
33.2 |
697 |
324 |
533 |
86 |
12.3 |
|
|
RSM-2510 |
260 |
33.2 |
863 |
375 |
635 |
86 |
14.1 |
|
|
RSM-2512 |
311 |
33.2 |
1033 |
425 |
737 |
86 |
16.3 |
|
|
RSM-2514 |
362 |
33.2 |
1202 |
476 |
838 |
86 |
17.1 |
|
|
RSM-308 |
30 |
210 |
41.9 |
880 |
387 |
597 |
102 |
18.1 |
|
RSM-502 |
50 |
51 |
71.3 |
364 |
176 |
227 |
127 |
15 |
|
RSM-504 |
102 |
71.3 |
727 |
227 |
329 |
127 |
19.1 |
|
|
RSM-506 |
159 |
71.3 |
1134 |
283 |
441 |
127 |
23.2 |
|
|
RSM-5013 |
337 |
71.3 |
2403 |
461 |
797 |
127 |
37.7 |
|
|
RSM-756 |
75 |
156 |
102.6 |
1601 |
286 |
441 |
146 |
29.5 |
|
RSM-7513 |
334 |
102.6 |
3427 |
492 |
826 |
146 |
59 |
|
|
RSM-1006 |
100 |
168 |
133.2 |
2238 |
357 |
526 |
178 |
59 |
|
RSM-10010 |
260 |
133.2 |
3463 |
449 |
710 |
178 |
72.6 |

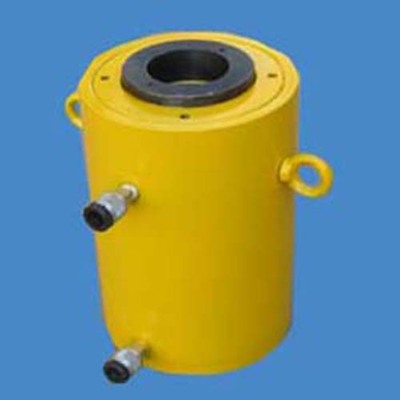

PLUSFOH空心同步千斤顶
|
型号 |
旧型号 |
本体高度 |
承载能力T |
行程 |
伸展高度 |
外径 |
中心孔径mm |
重量Kg |
|
PLUSFOH-120 |
RCS-120 |
56 |
12 |
8 |
63 |
70 |
19.6 |
1.5 |
|
PLUSFOH-121 |
RCS-121 |
121 |
41 |
162 |
70 |
19.6 |
2.8 |
|
|
PLUSFOH-1211 |
RCS-1211 |
121 |
41 |
162 |
70 |
19.6 |
2.8 |
|
|
PLUSFOH-123 |
RCS-123 |
184 |
76 |
260 |
70 |
19 |
4.4 |
|
|
PLUSFOH-202 |
RCS-202 |
162 |
20 |
51 |
213 |
99 |
26.9 |
7.7 |
|
PLUSFOH-206 |
RCS-206 |
306 |
155 |
461 |
99 |
26.9 |
14.1 |
|
|
PLUSFOH-302 |
RCS-302 |
179 |
30 |
63 |
242 |
114 |
33.3 |
10.9 |
|
PLUSFOH-306 |
RCS-306 |
330 |
156 |
486 |
114 |
33.3 |
21.8 |
|
|
PLUSFOH-603 |
RCS-603 |
248 |
60 |
76 |
324 |
159 |
53.8 |
28.1 |
|
PLUSFOH-606 |
RCS-606 |
324 |
152 |
476 |
159 |
53.8 |
35.4 |
|
|
PLUSFOH-1003 |
RCS-1003 |
254 |
100 |
76 |
330 |
213 |
79 |
59.9 |
|
双作用空心同步千斤顶 |
||||||||
|
PLUSFOH-307 |
RCS-307 |
330 |
30 |
178 |
508 |
114 |
33.3 |
22 |
|
PLUSFOH-3010 |
RCS-3010 |
432 |
257 |
689 |
114 |
33.3 |
27 |
|
|
PLUSFOH-603 |
RCS-603 |
248 |
60 |
89 |
337 |
159 |
53.8 |
28 |
|
PLUSFOH-606 |
RCS-606 |
324 |
165 |
489 |
159 |
53.8 |
35 |
|
|
PLUSFOH-6010 |
RCS-6010 |
438 |
257 |
695 |
159 |
53.8 |
46 |
|
|
PLUSFOH-1001 |
RCS-1001 |
165 |
100 |
38 |
203 |
213 |
79.2 |
39 |
|
PLUSFOH-1003 |
RCS-1003 |
254 |
76 |
330 |
213 |
79.2 |
61 |
|
|
PLUSFOH-1006 |
RCS-1006 |
342 |
152 |
495 |
213 |
79.2 |
79 |
|
|
PLUSFOH-10010 |
RCS-10010 |
460 |
257 |
718 |
213 |
79.2 |
107 |
|
|
PLUSFOH-1508 |
RCS-1508 |
349 |
150 |
203 |
552 |
248 |
79.5 |
111 |
