ATM-1是什么,ATM-3法兰调整器
Product characteristics:
在不产生管线张力的情况下，矫正扭曲、旋转错位
Correction of twist and rotation dislocation without producing pipeline tension
适用于大多数通用类法兰ANSI,API,BS和DIN法兰
Applicable to most general flanges ANSI, API, BS and DIN flanges

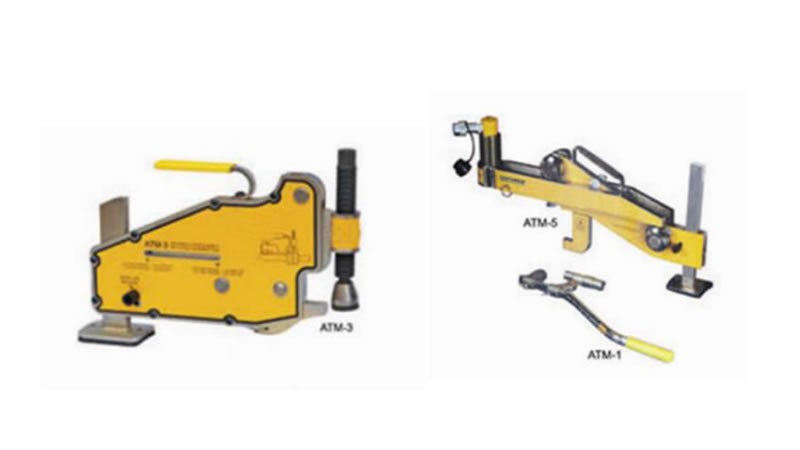

两种手动操作型号，ATM-1适用于小型法兰，ATM-3适用于大型高压法兰
Two manually operated models, ATM-1 for small flanges and ATM-3 for large high pressure flanges.
ATM-1法兰调整器技术参数：
ATM-3法兰调整器外形尺寸：
ATM-5法兰调整器选型表：
ATM series flange regulator selection table:
|
型号 Model |
负载（T） load |
螺栓孔范围（mm） Bolt hole range |
法兰厚度（mm） Flange thickness |
|
ATM-1 |
0.3 |
17-27.2 |
17-50 |
|
ATM-3 |
3.0 |
25-54 |
30-115 |
|
ATM-5 |
5.0 |
≥31.5 |
80-203 |
